A*寻路算法

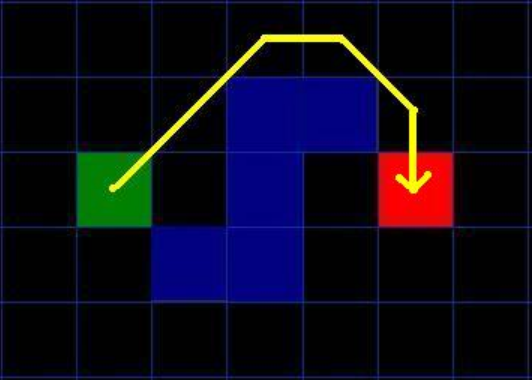

如图，绿方块是起点，红方块终点；蓝方块是水（障碍物）。想像在图的周围加上边界，建立坐标系，x和y分别从1开始，则x取值[1,9]，y取值[1,7]，起点坐标(3,4)，终点坐标(7,4);为简单起见，将坐标以一个整数标记:100 * y + x.

路径搜寻过程中，有一点与参考文章不同的是，障碍物的角被认为是可穿过的，只要穿过之后的坐标不是障碍物或边界。

参阅：http://www.cppblog.com/christanxw/archive/2006/04/07/5126.html 英文原文：http://www.gamedev.net/reference/articles/article2003.asp

/**
 * Author by metaphy
 * Date Feb 20, 2008
 */
package astar;

import java.util.ArrayList;

public class Coordinate {
    private int x;
    private int y;
    private int value;
    private Coordinate parent;

    public Coordinate(){}
    public Coordinate(int x, int y) {
        this.x = x;
        this.y = y;
        this.value = 100 * y + x;
    }
    public Coordinate(int value) {
        this.x = value % 100;
        this.y = value / 100;
        this.value = value;
    }

    public int getX() {
        return x;
    }
    public int getY() {
        return y;
    }
    public int getValue() {
        return value;
    }

    public Coordinate getParent() {
        return parent;
    }
    public void setParent(Coordinate parent) {
        this.parent = parent;
    }
    /**
     * Whether or not it's border
     * @return
     */
    public boolean isBorder(){
        return x == 1 || x == 9 || y ==1 || y== 7 ;
    }
    /**
     * Whether or not it's barrier
     * @return
     */
    public boolean isWater(){
        return value == 305
            || value == 306
            || value == 405
            || value == 504
            || value == 505
        ;
    }
    /**
     * @param xx
     * @param yy
     * @return
     */
    public boolean valid(int xx, int yy){
        return xx >=1 && xx<=9 && yy >=1 && yy<=7;
    }

    /**
     * Get valid adjacent coordinate list
     * @return
     */
    public ArrayList<Coordinate> getValidAdjacent(){
        ArrayList<Coordinate> list = new ArrayList<Coordinate>();
        for (int t = -1; t<= 1; t ++){
            for (int p = -1; p<= 1; p++){
                if (valid(x + t,y + p)){
                    Coordinate c = new Coordinate (x+t, y+p);
                    if (!c.isBorder() && !c.isWater()){
                        list.add(c);
                    }
                }
            }
        }
        return list;
    }
    /**
     * The G function
     * @param c
     * @return
     */
    public int getCostG(){
        if (parent != null){
            if (Math.abs(parent.getX () -x)==1 && Math.abs(parent.getY() - y )==1){
                return 14;
            }else {
                return 10;
            }
        }else {
            return 0 ;
        }
    }
    public int getCostG(Coordinate c){
        if (Math.abs(c.getX () -x)==1 && Math.abs(c.getY() - y )==1){
            return 14;
        }else if (c.getX() == x && Math.abs(c.getY()-y) == 1|| c.getY() ==y && Math.abs(c.getX() -x) ==1){
            return 10;
        }else {
            return Integer.MAX_VALUE;
        }
    }
    /**
     * The H function
     * @param c
     * @return
     */
    public int getDistanceH(Coordinate c){
        return (Math.abs(c.getX() - x) + Math.abs(c.getY() - y)) * 10;
    }
    /**
     * The F function
     * @param c
     * @return
     */
    public int getF(Coordinate c){
        return getCostG() + getDistanceH(c);
    }
}

/**
 * Author by metaphy
 * Date Feb 20, 2008
 */
package astar;

import java.util.ArrayList;

public class AStarSample {
    private ArrayList<Coordinate> openList = new ArrayList<Coordinate>();
    private ArrayList<Coordinate> closeList = new ArrayList<Coordinate>();
    private Coordinate start = new Coordinate(403);
    private Coordinate end = new Coordinate(407);
    /**
     * Try to find the path
     * @return
     */
    public boolean pathFinding(){
        Coordinate current = null;
        openList.add(start);
        do{
            current = lookForMinF();
            openList.remove(current);
            closeList.add(current);
            ArrayList<Coordinate> list = current.getValidAdjacent();
            for (Coordinate adjacent:list){
                if (!inClosedList(adjacent)){
                    if (!inOpenedList(adjacent)){
                        adjacent.setParent(current);
                        openList.add(adjacent);
                    }else{
                        int g0 = current.getParent().getCostG(adjacent);
                        int g1 = current.getCostG() + current.getCostG(adjacent);
                        if (g1 < g0){
                            adjacent.setParent(current);
                        }
                    }
                }
            }
        } while(!findTarget() && openList.size()>0);
        end.setParent(current);

        if (findTarget()){
            Coordinate tmp = end;
            while (tmp.getValue() != start.getValue()){
                System.out.println(tmp.getValue());
                tmp = tmp.getParent();
            }
            System.out.println(start.getValue());
            return true;
        }else{
            System.out.println("Can't find the path.");
            return false;
        }
    }
    /**
     * Look for the min F value coordinate from open list
     * @return
     */
    private Coordinate lookForMinF(){
        Coordinate c = openList.get(0);
        for (Coordinate tmp :openList){
            if (tmp.getF(end) < c.getF(end)){
                c = tmp ;
            }
        }
        return c;
    }
    /**
     * Find the target or not
     * @return
     */
    private boolean findTarget(){
        for (Coordinate open: openList){
            if (open.getValue() == end.getValue())
                return true;
        }
        return false;
    }
    private boolean inClosedList(Coordinate c){
        for (Coordinate close: closeList){
            if (close.getValue() == c.getValue())
                return true;
        }
        return false;
    }
    private boolean inOpenedList (Coordinate c){
        for (Coordinate open: openList){
            if (open.getValue() == c.getValue())
                return true;
        }
        return false;
    }
    public static void main(String[] args) {
        new AStarSample().pathFinding();
    }
}
